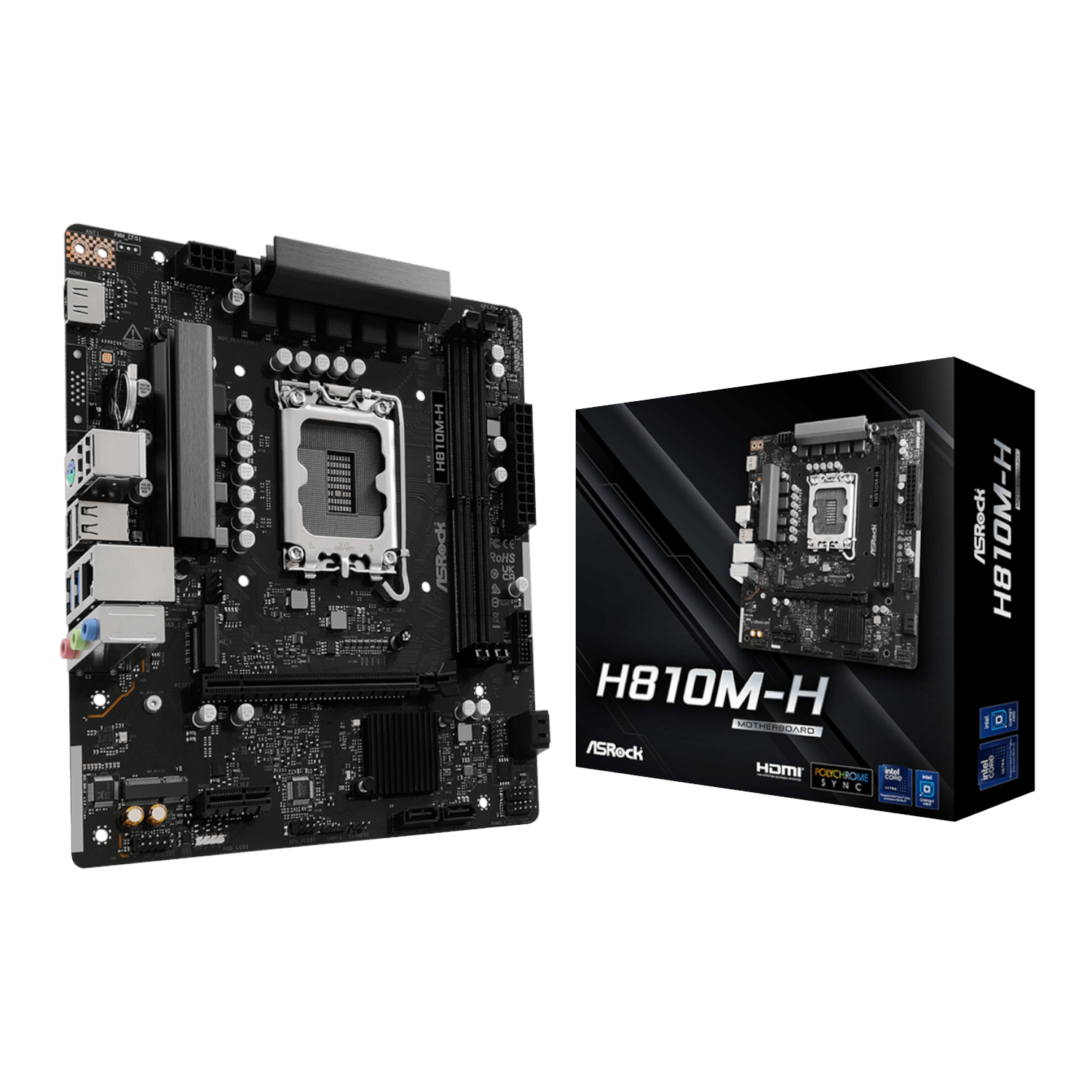

ASRock H810M-H Intel LGA1851 Micro ATX Motherboard - Black

• CPU
  • Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
  • Supports Intel® Hybrid Technology
  • Supports Intel® Turbo Boost Max 3.0 Technology
  • Supports Intel® Thermal Velocity Boost (TVB)
  • Supports Intel® Adaptive Boost Technology (ABT)
  • Integrated NPU for dedicated AI acceleration
• Chipset:
  • Intel® H810
• Memory
  • Dual Channel DDR5 Memory Technology
  • 2 x DDR5 DIMM Slots
  • Supports DDR5 non-ECC, un-buffered memory up to 6400*
  • Supports Clocked Unbuffered DIMM (CUDIMM)
  • Max. capacity of system memory: 128GB*
  • Supports Intel® Extreme Memory Profile (XMP) 3.0x*
  • * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS.
  • For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS
  • 256Mb AMI UEFI Legal BIOS with GUI support
• Graphics
  • Intel® Xe LPG Graphics Architecture
  • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  • * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
• Audio
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• LAN
  • Gigabit LAN 10/100/1000 Mb/s
  • Realtek RTL8111H
• Expansion Slots
  • CPU:
  • 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
  • Chipset:
  • 1 x PCIe 4.0 x1 Slot (PCIE2)*
  • 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT PCIe Wi-Fi module
  • * Supports NVMe SSD as boot disks
• Storage
  • Chipset:
  • 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
  • 4 x SATA3 6.0 Gb/s Connectors
  • * Supports NVMe SSD as boot disks
• USB
  • Chipset:
  • 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
  • 6 x USB 2.0 (4 Rear, 2 Front)
  • * All USB ports support ESD Protection
• Connector
  • 1 x SPI TPM Header
  • 1 x Power LED and Speaker Header
  • 1 x RGB LED Header*
  • 2 x Addressable LED Headers**
  • 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***
  • 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)****
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector
  • 1 x Front Panel Audio Connector
  • 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
  • * Supports in total up to 12V/3A, 36W LED Strip
  • ** Support in total up to 5V/3A, 15W LED Strip
  • *** CPU_FAN1 supports the fan power up to 1A (12W).
  • **** CHA_FAN1 supports the fan power up to 3A (36W).
  • CHA_FAN1 can auto detect if 3-pin or 4-pin fan is in use.
• Rear Panel I/O
  • 2 x Antenna Mounting Points
  • 1 x PS/2 Mouse/Keyboard Port
  • 1 x HDMI Port
  • 2 x USB 3.2 Gen1 Ports
  • 4 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI
  • Software
  • ASRock Motherboard Utility (A-Tuning)
  • ASRock Polychrome SYNC*
  • UEFI
  • ASRock EZ Mode
  • ASRock Full HD UEFI
  • ASRock My Favorites in UEFI
  • ASRock Auto Driver Installer
  • ASRock Instant Flash
  • *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Form Factor
  • Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
• OS
  • Microsoft Windows® 11 64-bit
• Certifications
  • FCC, CE
  • ErP/EuP ready (ErP/EuP ready power supply is required)

WHAT'S IN THE BOX:

• ASRock H810M-H Intel LGA1851 Micro ATX Motherboard - Black x1
